无源器件

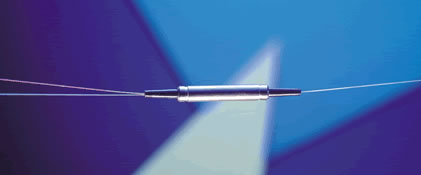

| 产品名称： 虑片式CWDM 浏览次数：829 次 << 返回目录 >> |
产品说明：
| 性能 |
|
|
| ● 隔离度高
|
| ● 插入损耗低 |
| ● 高稳定性 |
|
| ● 全胶封装 |
|
| ● 封装尺寸小 |
|
|
| 应用 |
|
| ● 通信系统 |
|
| ● 通信设备 |
|
| ● DWDM |
|
| Parameter |
Standard
Specification |
Wide Band
Specification |
| Channel Center Wavelength |
|
1260-1610
(1271-1611)nm |
| Channel Spacing |
20nm |
| Min Channel Passband |
 c  7.0nm
|
| Max Add/Drop Channel Insertion Loss |
0.70dB(0.45dB typ.) |
| Max Add/Drop Channel Insertion Loss Variation |
0.20dB |
| Max Remaining Channel Insertion Loss |
0.40dB(0.25dB typ.) |
0.55dB(0.35dB typ.) |
| Min Adjacent Channel lsolation |
30dB |
| Min Non-adjacent Channel lsolation |
40dB |
|
Min Remaining Channel Isolation |
12dB |
| Max Insertion Loss Temperature Sensitivity |
0.18dB |
| Min Directivity |
50dB |
| Min Return Loss |
50dB |
| Max Polarization Dependent Loss |
0.10dB |
| Max Polarization Mode Dispersion |
0.10ps |
| Max Power Handling |
500mW |
| Max Tensile Load |
5N |
| Operating Temperature |
-40 to +85 |
| Storage Temperature |
-40 to +85 |
| Package Dimension(DxL) |
Refer to drawing |
| Fiber Type |
ITU-T G.657A |
|
