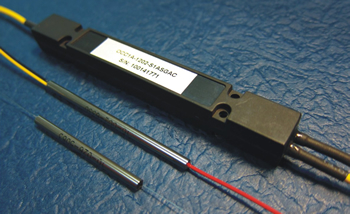

| 产品名称： 拉锥分路器 浏览次数：693 次 << 返回目录 >> |
产品说明：
| 性能 |
|
|
| ● 光路全胶 |
| ● 高隔离度 |
| ● 尺寸超小 |
|
|
| 应用 |
| ● 光路放大 |
| ● 激光器 |
| ● 光学传感 |
| Parameter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Parameter |
Unit |
WBC |
| 1x2/2x2 |
1x3 |
| 50% |
45% |
40% |
35% |
30% |
25% |
20% |
10% |
5% |
1% |
33.30% |
| Operation Wavelength |
nm |
13 10+/-40 or 1550+/40 or 1310 |
| +40 & 1550 |
| +40 |
| IL |
Max |
dB |
3.6/3.6 |
3.0/3.9 |
2.5/4.4 |
2.2/5.0 |
1.9/5.7 |
1.6/6.6 |
1.3/7.6 |
0.65/10.8 |
0.4/14.5 |
0.2/21.5 |
6 |
| PDL |
Max |
dB |
0.15/0.15 |
0.1/0.15 |
0.1/0.2 |
0.3 |
| Isolation |
Min. |
dB |
|
| Return Loss |
Min. |
dB |
50(55,for 2x2 type,Design guarantee) |
50 |
| Directivity |
Min. |
dB |
55(55,for 2x2 type,Design guarantee) |
55 |
| Operating Temperature |
°C |
-40~85 |
| Storage Temperature |
°C |
-40~85 |
| Thermal Stability |
dB/°C |
0.002dB/°C |
|
| Fiber Type |
-- |
Compliedwith G852.D or G.667.A1 |
| Fiber Length |
cm |
Customer defined |
| Package Dimension1 |
mm |
3.0*4.0 / 3.0*54 (LD-250um bare fiber) |
<==3.0*54 |
| Package Dimension2 |
mm |
3.0*55 / 3.0*65 (MD-900um loosetube) |
<==3.0*65 |
| Package Dimension3 |
mm |
95*12*10(HD-2.0/3.0mm cable) |
-- |
| Note1 |
|
All performance tests without connectorized atroom temperature |
| Note2 |
|
1. Hi1060 flex Hi980, Hi1060 flexor, OFS980-16 |
| For more information on this product or other products now available from Samwell。 |
|
